Laser Printer Steps: Understanding How It Works

Laser Printer: How It Works?

Laser printers are found in both home office and commercial settings. They made it easier to handle documents since they print quickly and accurately, unlike an inkjet printer that uses ink cartridges. It’s not only about spraying ink on paper. It is a series of exact physical and chemical actions that define the laser printing process. Consider the digital file you have. The ink moves around inside the printer in a certain pattern. Every action is precise. It makes virtual data into text and graphics that you can interact with. As soon as you press “print,” a special process leveraging static electricity (a principle also used in a photocopier) of charges, light, and powder starts. This contrasts with inkjet technology. Newer printers, especially color laser printers, have refined these processes. The fundamental laser printing process was invented by Gary Starkweather at IBM in the 1960s.

The 7 Essential Laser Printer Steps

The core of laser printing is its seven connected steps. They make up the full process from a digital signal to a printed page. Knowing these steps is key to understanding how laser printers work. The first step sets the stage for the rest. They are:

1. Processing/Sending
2. Cleaning
3. Charging
4. Exposing
5. Developing
6. Transferring
7. Fusing

These seven stages work like “gears in a precise machine.” Each part is vital. No part can be missing. They all ensure the print job finishes correctly.

Step-by-Step Breakdown: From Data to Print

Now, we will examine every step involved in laser printing. We will learn about the scientific principles behind them.

Processing/Sending

When you select “print” on your computer, your document is not printed immediately. The printer first changes the image into a digital format it can read (for example, a raster image). After that, the digital data is stored in the printer’s memory for a short time and processed. It is similar to a set of detailed instructions that can be put to use. The printer receives the data. After that, it is ready to be printed.

Cleaning

Before a new print job starts, the laser printer does a key cleaning step. This is to make sure the photoconductive drum (OPC drum) has no leftover toner or static charge from the last print job. A scraper blade removes toner bits. Electrostatic erase lamps remove leftover charges. The drum gets fully clean. This makes it ready for the new print job. It is like “a blackboard wiped clean, ready for new writing.”

Charging

When the drum unit is cleaned, its whole surface develops a uniform static charge, typically a negative electrical charge (or negative electrostatic charge). A primary corona wire or charge roller is used to do this. The drum is balanced with charge. This prepares the surface of the drum for the next step in development. This step makes it possible for the drum to pick up toner accurately.

Exposing

This is the most precise part of laser printing. The surface of the drum is scanned by a laser beam that is very precise. The laser adjusts the charge in certain areas of the drum according to the image or text to be printed. Lasers remove a lot of the charge from the areas of the drum they hit. It leaves an invisible image on the drum that is not yet visible. It is similar to “using light to create an image on photographic film.” However, the charges are different here.

Developing

Next, the drum unit turns near the printer toner cartridges. Negatively charged toner is made of charged, tiny plastic particles. These negatively charged toner particles are usually negatively charged for most black and white printers. When the drum unit with the latent image passes by the toner, the toner particles are attracted to the areas of the drum where the laser lowered the charge. They stick exactly to these areas of the drum. This “develops” the invisible latent image into a visible toner image.

Transferring

After the toner image is ready, it is transferred to the piece of paper (or sheet of paper). As the paper enters the printer, it gets positively charged areas that is opposite to the charge on the drum. When the drum unit with the toner image comes in contact with the paper, the toner particles move from the surface of the drum to the paper. This is due to the fact that opposite charges are attracted to each other. Now, the paper shows the printed image from the toner. However, the idea is only lightly present on the paper.

Fusing

This is the final step of the laser printing process. It helps the printed page remain intact for a long time. The paper with the toner image is passed through the fuser assembly. The fuser assembly is made up of heat rollers and pressure rollers. When the paper goes through the rollers, the toner particles melt because of the high heat and pressure. They become part of the paper fibers and cannot be removed. Once the toner has cooled, it adheres well to the paper. As a result, the image on the print is protected from scratches and smudges. It is similar to melting plastic bits and sticking them to paper. It makes the printed content durable.

Key Components: The Printer’s Inner Workings

A laser printer works well because its main parts work together. Knowing what these parts do helps us understand the whole printing process better.

Toner Master: Your Choice for Excellent Printing

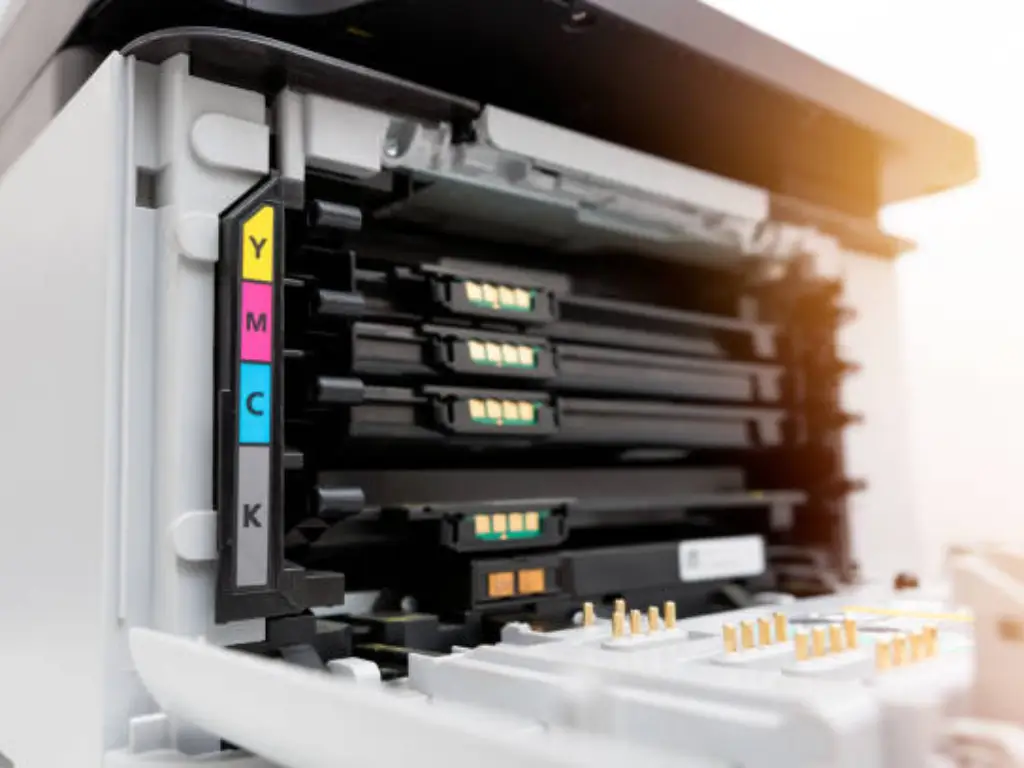

The quality of the printer toner cartridges affects both the prints and the printer’s lifespan. Selecting a well-known brand is similar to giving your printer “a strong and precise heart.” Toner Master has been producing printer toner cartridges for more than 17 years. Our goal is to offer top-quality printing services.

Our strengths include:

• High Quality: We deeply research toner formulas, ensuring sharp, clear prints. We use selected raw materials and have precise formulations. Every product is checked against ISO9001 and other standards, including ISO14001, CE, FC, ROHS, TUV, and STMC.
• Wide Compatibility: Our products work with many major printer brands, including Brother, Canon, EPSON, HP, Konica Minolta, Kyocera, Lexmark, OKI, Ricoh, Samsung, Sharp, Toshiba, Xerox, and Pantum. Our 17 years of experience ensures our toner formulas work perfectly with various printers.
• Cost Savings: Our compatible toners cost one-third of original supplies, helping you greatly lower daily printing costs. This low cost does not mean lower quality; it comes from efficient automated production.
• Strict Quality Control: We use 100% automated production lines, ensuring high output and zero errors. We have invested $1 million in automated assembly lines. Our monthly output is 500,000 toner cartridges. We do incoming material checks, in-process checks, and finished product checks, including individual product checks and color checks.
• Professional Service: We offer 24/7 support, professional pre-sales consulting, and free samples. We provide custom logo and packaging services, and can customize toner formulas based on client printer models. We also offer a 3-year warranty, exceeding the common 2-year market warranty. All finished products are stored in a controlled warehouse to maintain integrity.

Common Issues & Troubleshooting by Step

Understanding laser printing steps helps us solve common printing problems.

• Blank Pages or Missing Images: This can be from data not sent right, drum not charged right, laser errors, or toner cartridge issues. Check connections, change the toner cartridge, or get professional repair.
• Fuzzy Prints or Flaking Toner: This usually means a fuser assembly problem. The fuser unit might not be hot enough or have enough pressure. It could also be poor toner powder quality.
• Streaks or Smudges on Prints: This can be from the drum not cleaned enough or uneven toner spread. Worn drums or blades can also cause this.

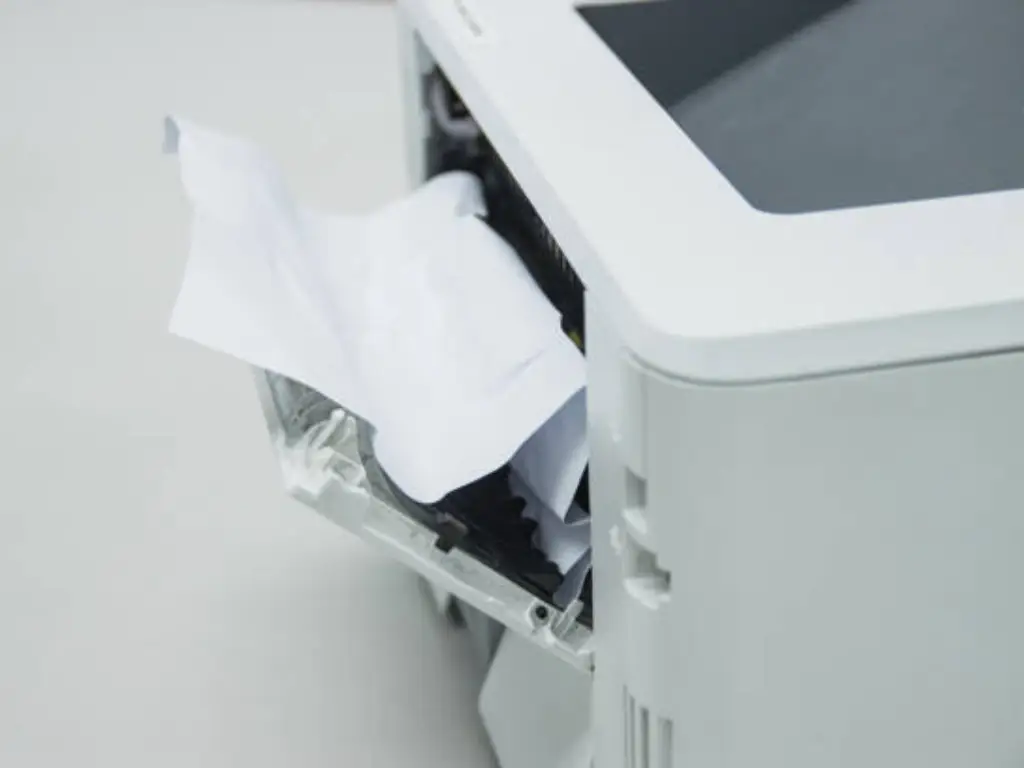

• Paper Jams: This is not directly part of the printing steps. But paper path problems stop the whole process. Check the paper feed. Make sure paper type and placement are correct.

Maintaining Your Laser Printer for Longevity

Like any precise machine, a laser printer needs proper care. This keeps it working well and makes it last longer.

• Regular Cleaning: Use special tools to clean dust and spilled toner inside. Do not touch the drum. It is very sensitive.
• Use Quality Supplies: Using high-quality toner cartridges is key. Bad toner harms print quality. It can also damage printer parts. For example, Toner Master toner cartridges use eco-friendly materials. They have strict quality control. This ensures performance and reliability like original supplies.
• Storage Environment: Put the printer in a dry place with mild temperatures. Keep it out of direct sunlight and extreme heat. This helps protect internal electronics and toner stability. Toner is sensitive to humidity and temperature. Bad storage can cause clumping. This shortens its life. Toner Master stores products in a controlled warehouse to reduce agglomeration risk and maintain integrity.
• Firmware Updates: Check for and update printer firmware regularly. This fixes bugs and improves performance.
• Proper Shutdown: When not using the printer, follow correct shutdown steps. This lets its internal parts cool down.

By knowing each step of laser printing and taking care of it, you can better use this complex office tool. This will make sure it works well for you.
